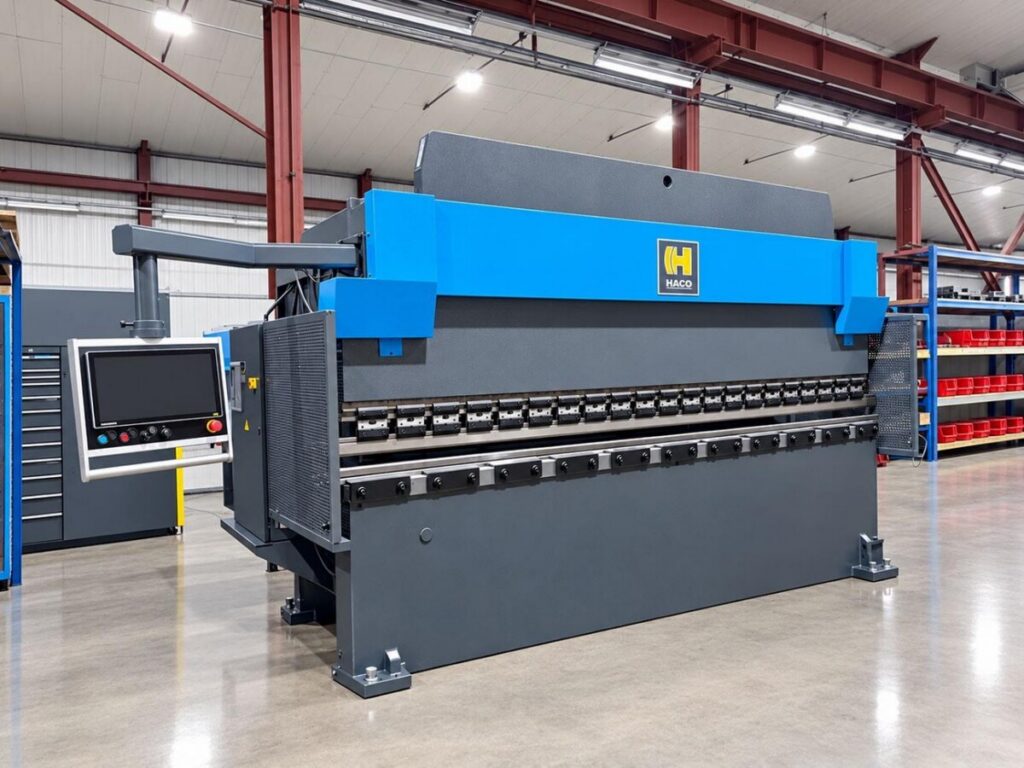

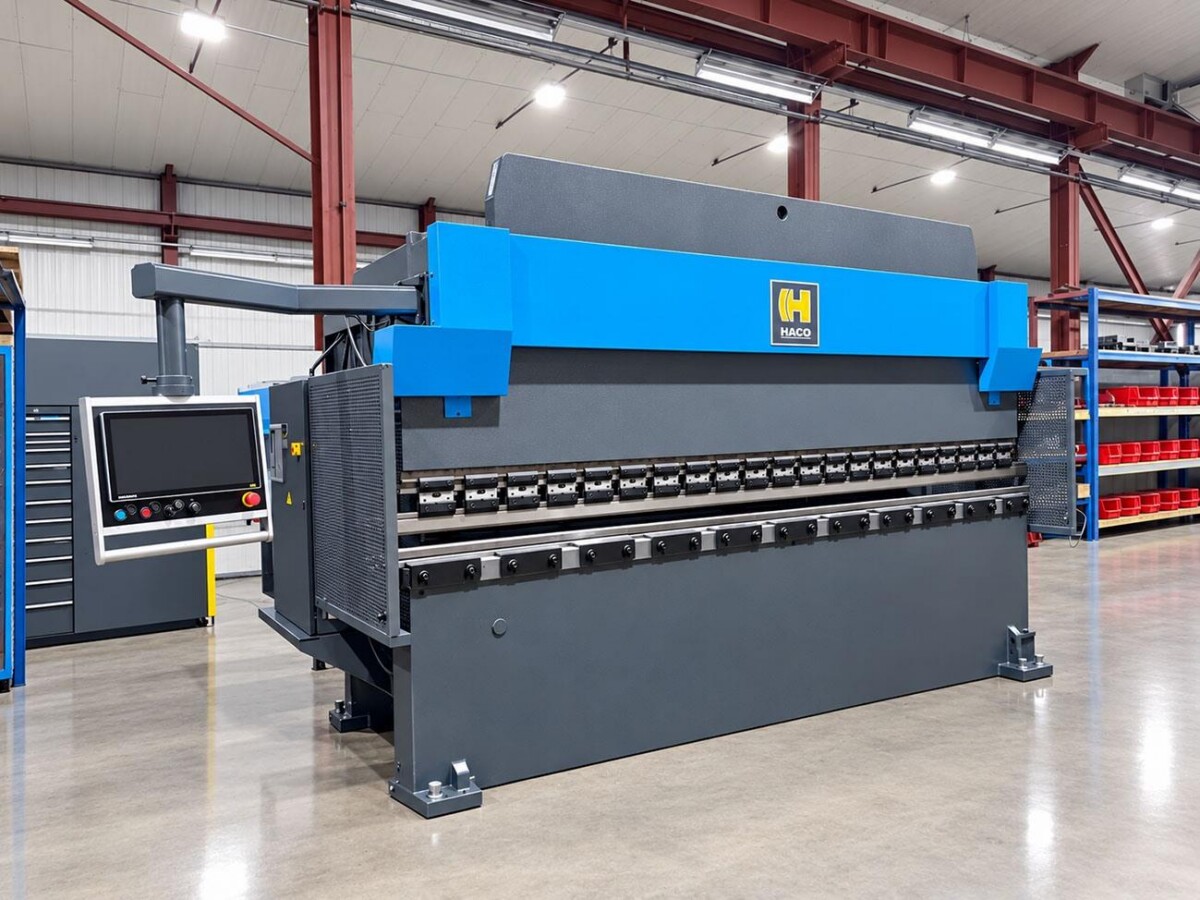

Haco ERM 150 ton x 4300 mm CNC — Hydraulic press brake

‹›1 / 2

Save & share

Remove from compare list Add to compare list Go to Compare Page

Share Haco ERM 150 ton x 4300 mm CNC — Hydraulic press brake

Copy link PDF

Brand

Haco ERM

Model

150 ton x 4300 mm CNC

Condition

Used

Equipment location Deinze, Belgium

GET TO KNOW THE MACHINE

Equipment overview

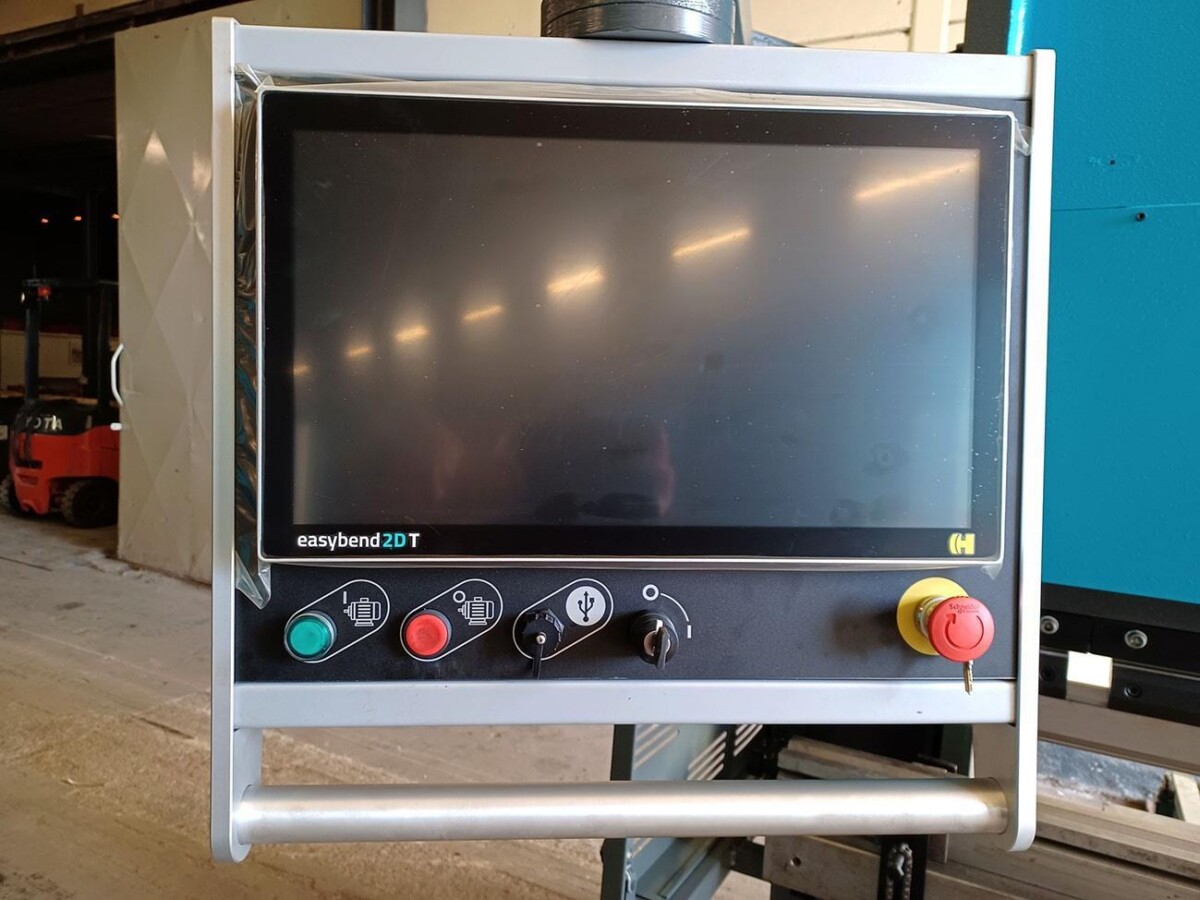

3 axes: Y1 / Y2 / X Amada system tooling at the top and bottom Retrofit by Haco with Easybend 2D Touch control in 2026

Technical specifications

Capacity	150 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3750 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4700 mm Depth: 1700 mm Height: 2850 mm Weight: 11 ton

AT A GLANCE

Technical specifications

Condition

Used

Equipment videos

• Equipment video

Location

• Belgium
